Câmara Termográfica FOTRIC TK7
€1.499,00
Câmara Termográfica FOTRIC TK7
FotricCâmara Termográfica FOTRIC TK7, Resolução IV de 384 x 288, FOV de 49°*37°, Imager Térmico sem Foco com Câmara Visual de 8MP para Inspeções de Edifícios, Elétricas, -20°C a 550°C, Ecrã Tátil de 3,5"
- Preço normal
- €1.499,00
- Preço de saldo
- €1.499,00
- Preço normal
-
Imposto incluído.
Envio calculado na finalização da compra.
-
Imagem Térmica Nítida com Resolução Verdadeira de 384 × 288
Equipado com um verdadeiro detetor de infravermelhos de 384 × 288 e um amplo campo de visão de 49° × 37°, o TK7 oferece imagens térmicas nítidas para digitalização rápida e tarefas de inspeção geral. O design sem foco permite que os utilizadores capturem imagens térmicas instantaneamente, sem ajuste manual. -

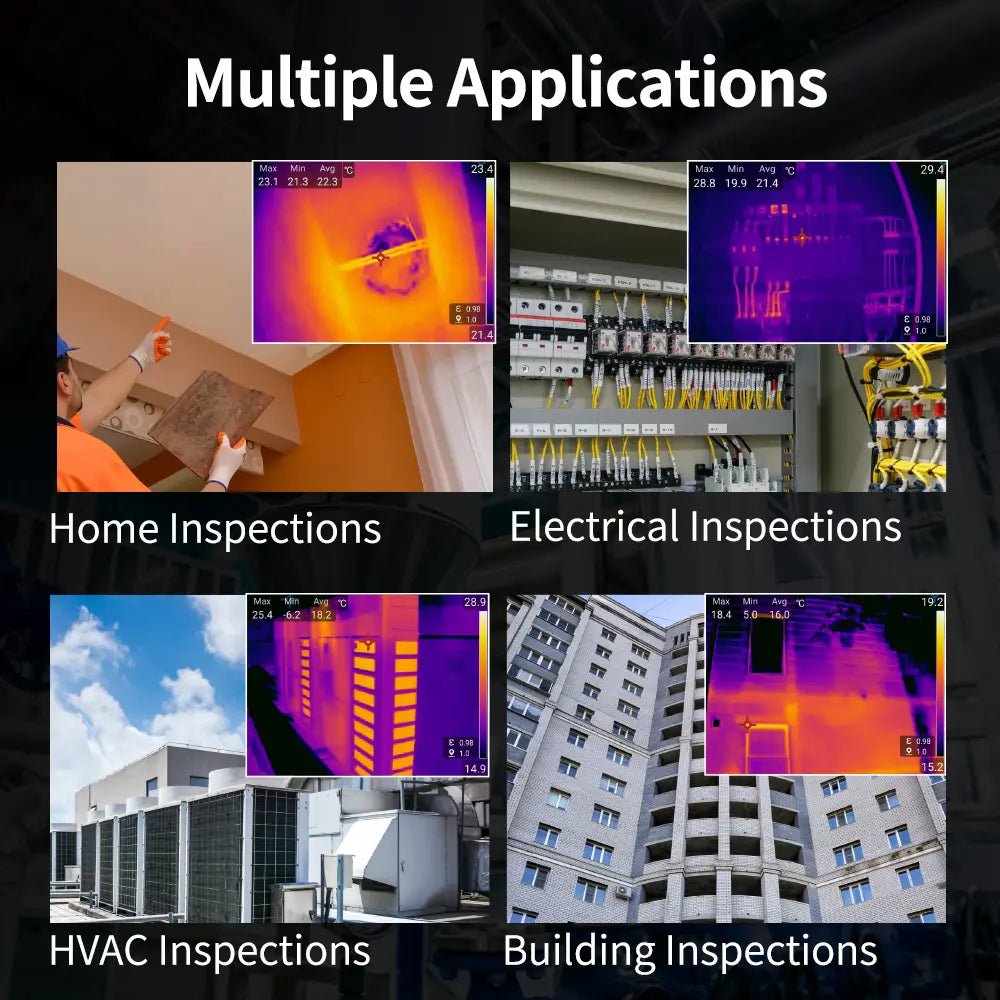

Ideal para Aplicações de Inspeção Diárias
Concebido para inspeções elétricas, mecânicas, HVAC e de edifícios de rotina, o TK7 ajuda a identificar rapidamente componentes sobreaquecidos, problemas de isolamento e padrões de temperatura anormais, permitindo uma deteção eficiente e sem contacto de falhas. -
Ampla Gama de Medição de Temperatura
Cobre uma ampla gama de temperaturas de -20 °C a 550 °C (-4 °F a 1022 °F), tornando-o adequado para uma variedade de cenários industriais e de manutenção, desde ambientes de baixa temperatura a verificações de equipamentos de alta temperatura. -
Fusão de Imagem Térmica e Visual
Possui uma câmara visual de 8 megapixels que funciona em conjunto com a imagem térmica, fornecendo referências visuais claras para melhorar a precisão da inspeção e a clareza dos relatórios. -
Funcionamento por Ecrã Tátil num Design Compacto
O ecrã tátil de 3,5" oferece operação intuitiva e visualização clara de dados térmicos, enquanto o formato leve e portátil torna o TK7 fácil de transportar e usar para inspeções diárias.
FOTRIC develops professional thermal and acoustic imaging solutions for industrial and inspection applications.
FOTRIC thermal cameras are suitable for engineers, electricians, maintenance teams, researchers, and industrial inspection professionals.
Yes, FOTRIC cameras support PC software and mobile applications for analysis, reporting, and real-time monitoring.
FOTRIC provides professional technical support, firmware updates, and continuous software improvements.

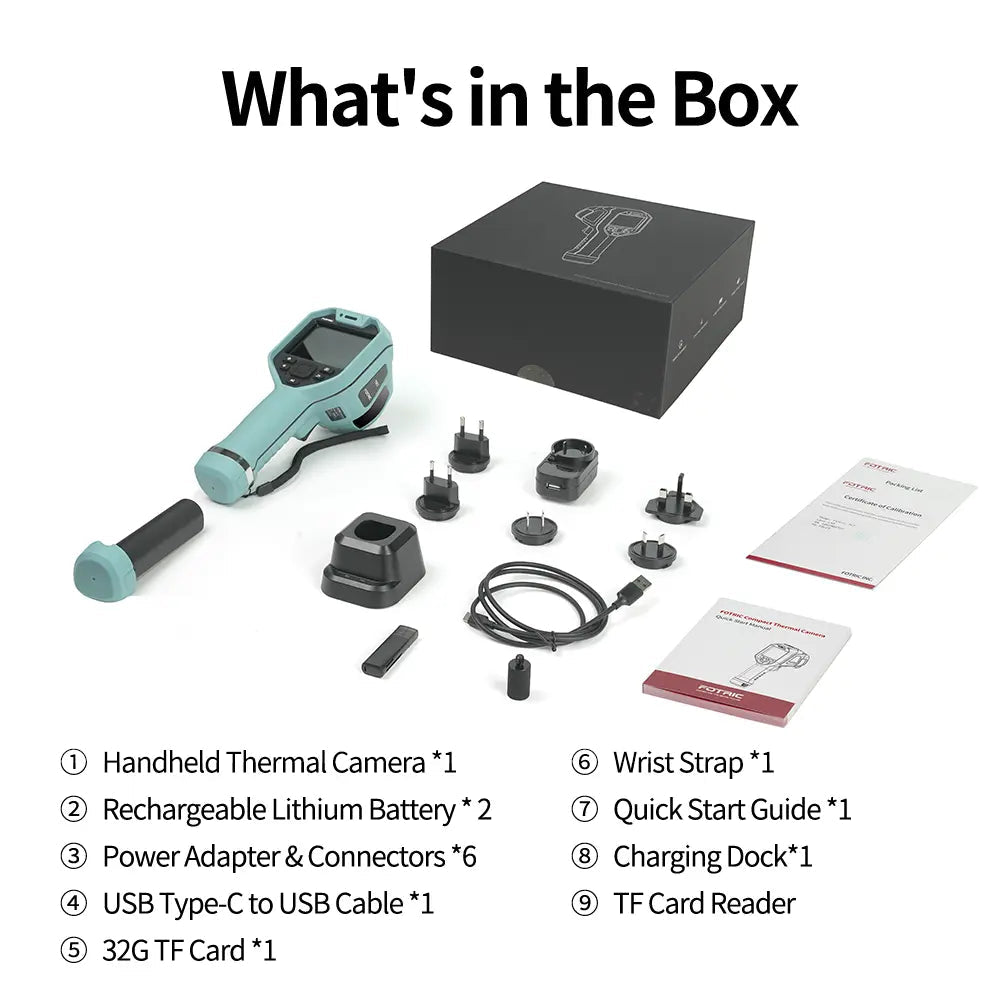

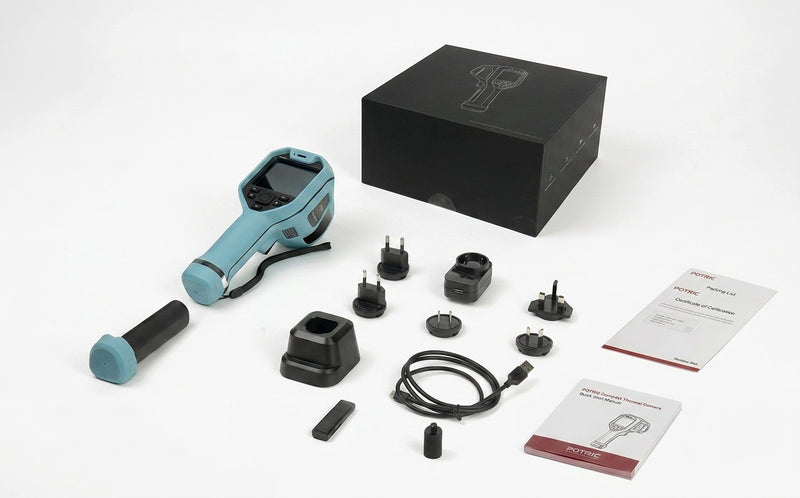

Everything You Need, Right Out of the Box
What's Included
- TK7 Handheld Thermal Camera
- Rechargeable Lithium Battery (2x)
- Power Adapter & Connectors (6 types)
- Charging Dock
- USB Type-C to USB Cable
- 32 GB TF Card
- TF Card Reader
- Wrist Strap
- Quick Start Guide

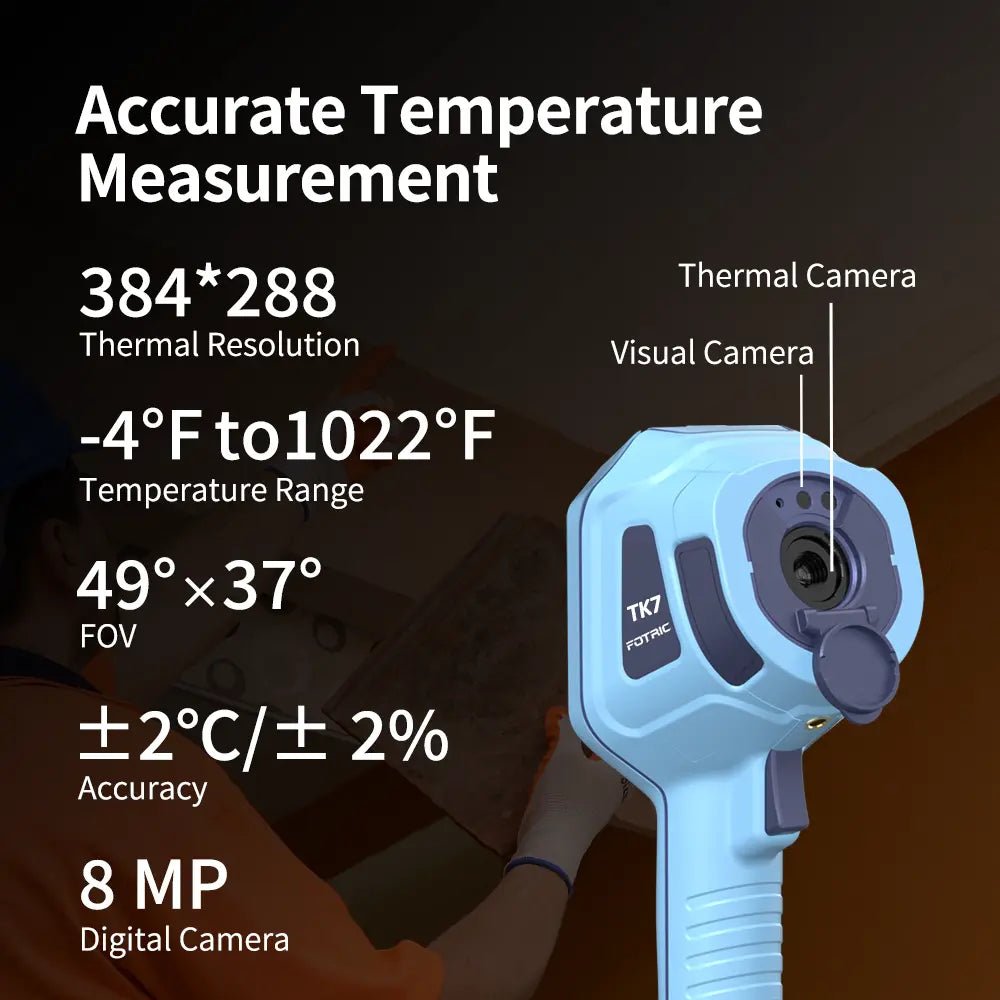

Technical Specifications
IR Resolution
384 × 288
Thermal Sensitivity (NETD)
40 mK @ 30°C
Field of View (FOV)
49° × 37°
Focus Mode
Focus free
Image Frame Rate
40 Hz
Digital Camera
8 MP

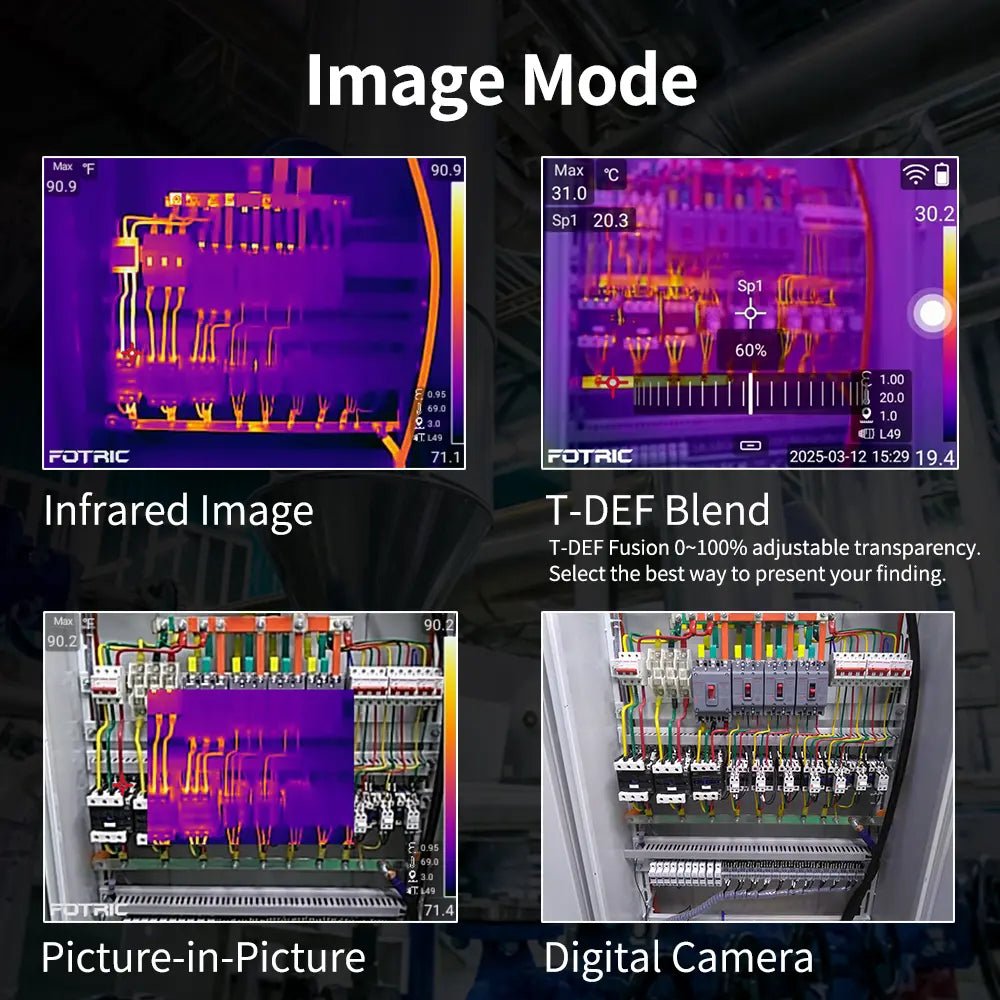

Image Modes
Thermal, Visible, PIP, T-DEF® Fusion
Temperature Rang
-20°C – 550°C
Accuracy
±2°C or ±2%
Display
3.5" touchscreen
Battery
5000 mAh Li-ion, ≥ 4 hours
Storage
32 GB TF card, expandable to 128 GB
Remote Display
WiFi to smartphone / tablet
Weight
800 g
Protection
IP54, 2 m drop
FAQ
FAQ
Need more than just FAQs? Access our complete library of user manuals, software guides, and step-by-step video tutorials.
View All Support ResourcesWhat makes the 384×288 detector different from entry-level cameras?
110,592 genuine measurement pixels — about 40% more than 320×240 — each a direct sensor reading. Combined with a 17 μm ceramic-packaged detector and 40 mK thermal sensitivity, the TK6 captures finer thermal detail with lower noise, especially in low-contrast scenes where budget sensors struggle.
How does focus-free at 384×288 compare to manual focus?

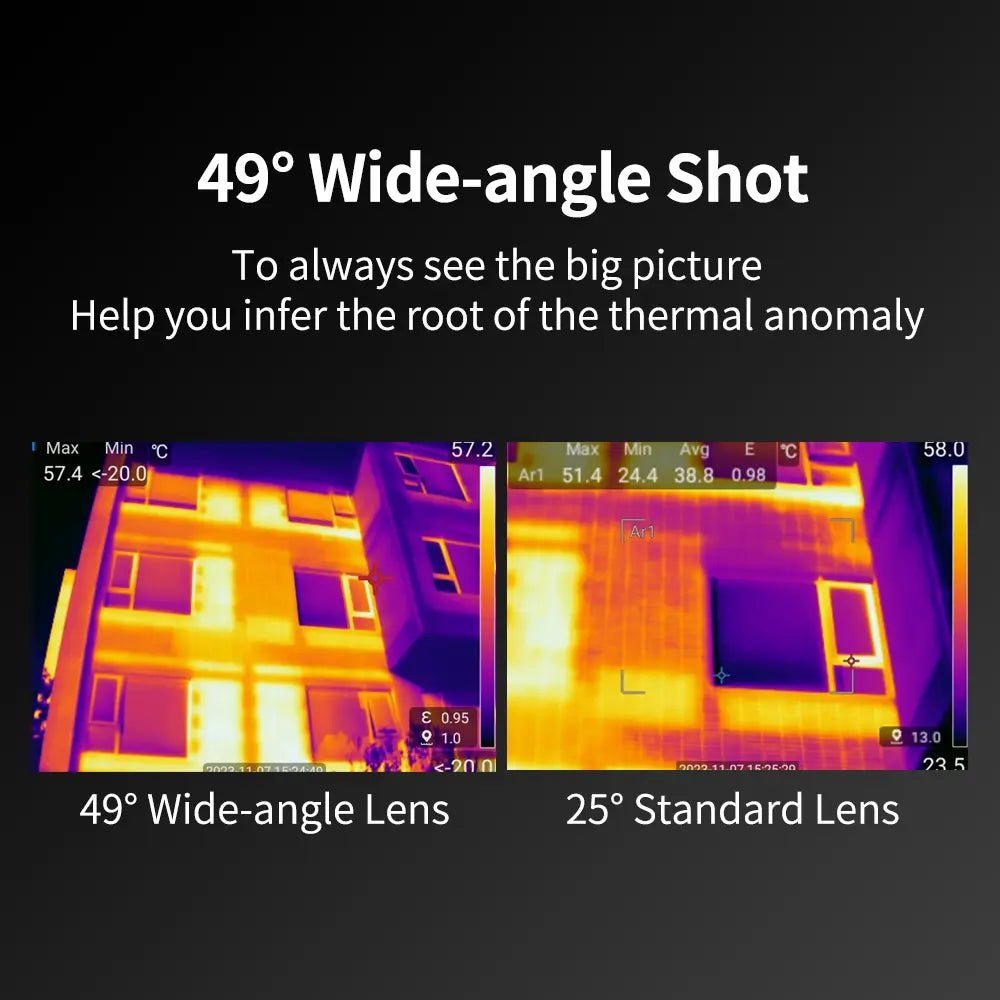

The TK7 pairs professional-grade 384×288 resolution with a focus-free 49°×37° wide-angle lens. You sweep large areas without touching a focus ring, and the resolution is high enough to catch anomalies that lower-res cameras miss. If your day is about coverage and speed moving between panels, ducts, and building envelopes — the TK7 workflow is faster without sacrificing image quality. For extreme close-up PCB work, the TK6's manual focus is the better fit.
What connectivity and remote control options does it have?
- Dual-band WiFi — stream live thermal images to a phone, tablet, or PC
- GPS geotagging — automatically tag each image with location data for route documentation
- EasyIR mobile app — remote control and image transfer from your phone
- IRExplorer web interface — control the camera from any browser, no software install needed

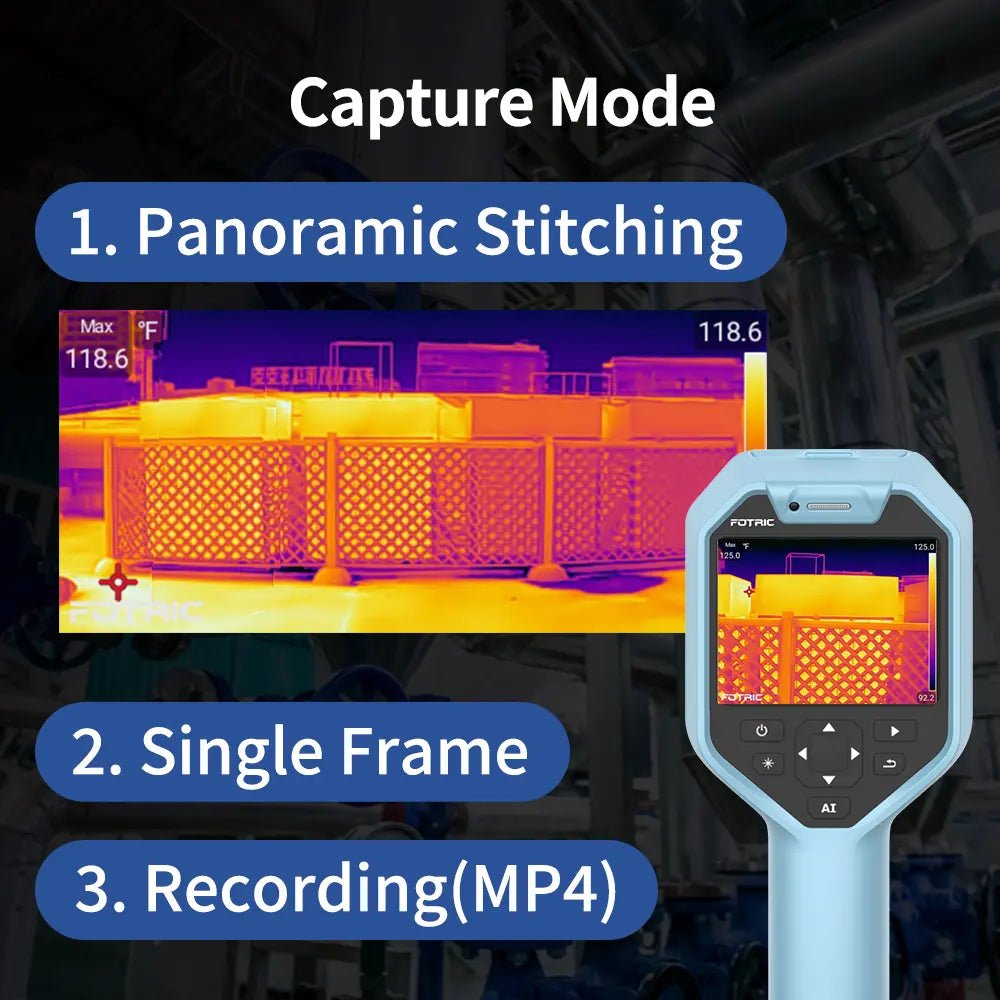

- Panoramic Stitching — scan large areas and stitch multiple frames into one wide thermal image
Can it record video, not just still images?
Yes — and this is a major differentiator. In addition to standard MP4, the TK7 records Radiometric Video in IRS/IRSX format, where every pixel in every frame stores full temperature data. Review any moment of the recording in AnalyzIR® Professional software — re-measure, adjust emissivity, or export frame-by-frame. This is essential for transient fault analysis: a breaker that trips for half a second, a bearing that spikes under load.
What battery setup does it come with?
The standard TK7 package includes TWO 5000 mAh field-replaceable lithium batteries — each providing 4+ hours of continuous operation. With both charged, you have a full workday covered without reaching for a power bank. Hot-swap in seconds on-site.
What advanced imaging technologies are built in?
Powered by an Android-based platform, the TK7 includes FOTRIC's full imaging stack:
- T-TWB® — adaptive color mapping for scenes with large temperature differences
- IREdge — contour sharpening for clearer object definition
- T-DEF® Blend — thermal and 8 MP visual fusion, 0%–100% adjustable
- Super Resolution — software enhancement for even finer detail beyond native 384×288
