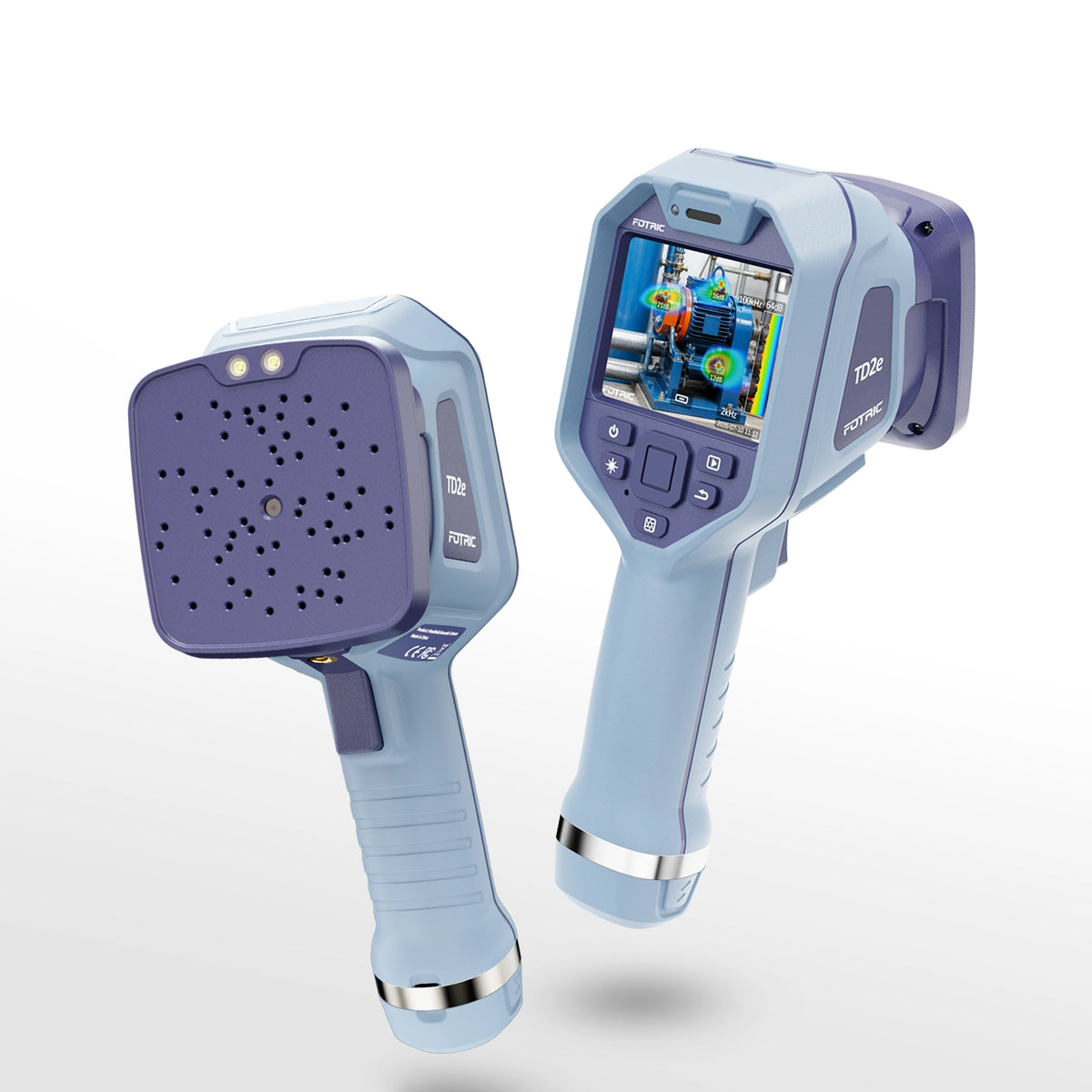

FOTRIC TD2e Termovisor Acústico

Preço normal
€1.039,99
Preço de saldo
€1.039,99
Preço normal
Imposto incluído. Envio calculado na finalização da compra.
Limited-Time Offer
Save 18% Today
Automatically applied at checkout No code needed
Package:
Quantity:
Envio Grátis
Política de devolução de 30 dias
Garantia de 1 Ano
Apoio ao Cliente 24/7

Tecnologia Avançada de Imagem Acústica

Equipado com 64 microfones digitais MEMS de alta sensibilidade e um campo de visão (FOV) de 58° × 45° para uma localização precisa da fonte sonora. Cobre um vasto intervalo de frequências de 2kHz a 100kHz, com uma distância de trabalho de 0,3~60m, ideal para detetar fugas audíveis e ultrassónicas, descargas parciais e anomalias mecânicas. Inclui também uma câmara digital industrial de 5 megapixéis para referência visual detalhada.


Localize Rapidamente Várias Fugas Industriais e Problemas de Vibração

A câmara de imagem acústica FOTRIC TD2e permite a deteção de fugas de ar comprimido, identificação de fugas a vácuo, verificação de fugas em válvulas pneumáticas, deteção de vibrações em juntas soltas e verificação da integridade de selos — tudo sem contacto ou tempo de inatividade. Visualize instantaneamente fontes sonoras anormais em tempo real para melhorar a eficiência da manutenção e prevenir falhas dispendiosas.

Foco da Imagem Acústica e Medição do Nível de Pressão Sonora

Combina redução dinâmica adaptativa de ruído e algoritmos de microdeteção para alcançar uma localização focada de fontes sonoras. Suporta ajuste manual de frequência e exibição de frequência de pico, com saída de dados em tempo real ao nível de dB emparelhada com imagens acústicas, bem adequada para localizar e diagnosticar uma vasta gama de fontes sonoras industriais.

Ecrã Tátil de Alta Resolução e Vários Modos de Visualização

O ecrã tátil IPS de alta resolução de 3,5" (640 × 480) com vidro protetor suporta modos de exibição de fonte única, múltiplas fontes e todas as fontes. Equipado com modos duplos de supressão de ruído e microdeteção, pode sobrepor dados de pressão sonora em imagens de luz visível para diagnósticos mais rápidos e intuitivos.

Design Portátil e Durável

Leve e robusto com classificação IP54 e resistência a quedas de 2 metros. O imageador acústico FOTRIC TD2e inclui uma bateria recarregável de 5000mAh substituível em campo para ≥3 horas de operação contínua, ideal para inspeções de campo em setores industriais, AVAC, manufatura e energia.
FOTRIC TD2e Termovisor Acústico
€1.039,99

Everything You Need, Right Out of the Box

StandardProfessional Kit

What's Included

  • TD2e Acoustic Imaging Camera
  • Rechargeable Lithium Battery
  • Charging Dock
  • Power Adapter
  • USB Type-C to USB Cable
  • 32GB TF Card
  • Tool Holster
  • Quick Start Guide
  • Packing List

What's Included

  • TD2e Acoustic Imaging Camera
  • Rechargeable Lithium Batteries (2x)
  • Charging Dock
  • Power Adapter
  • USB Type-C to USB Cable
  • 32GB TF Card
  • Tool Holster
  • Portable Soft Bag
  • Hard Carrying Case
  • Quick Start Guide
  • Packing List
  • 18-Month Extended Warranty

Technical Specifications

Microphone channels
64 MEMS Digital Microphones
Frequency range
2 kHz – 100 kHz
Sound sampling rate
200 kHz
Weight
720g
Acoustic image FOV
58° × 45°
Working distance
0.3 – 60 m
Display
3.5" IPS LCD touchscreen, 640 × 480
Digital camera
5 MP industrial-grade
Image modes
Single-source, Multi-source, All-source
Detection modes
Noise Suppression, Micro Detection
Battery type
3.6 V, 5000 mAh rechargeable Li-ion, field-replaceable
Battery life
≥ 3 hours per battery
Protection rating
IP54 (IEC 60529)
Data storage
32 GB TF card
Protection rating
IP54 (IEC 60529)

FAQ

FAQ

Need more than just FAQs? Access our complete library of user manuals, software guides, and step-by-step video tutorials.

View All Support Resources
How does the TD2e acoustic imaging camera work?

The TD2e uses an array of 64 MEMS microphones to capture sound from multiple directions simultaneously. A beamforming algorithm focuses on sound sources from specific directions, filtering out environmental noise. The device then displays the sound source location as a colorful heatmap overlaid on the live camera image, allowing you to "see" where sounds are coming from — including ultrasonic sounds beyond human hearing.

What kind of leaks and faults can the TD2e detect?

The TD2e can detect:

  • Compressed air system leaks — including pneumatic valves, cylinders, and fittings
  • Gas leaks — pressurized gas escaping from pipelines
  • Vacuum system leaks — negative pressure leaks
  • Loose joint vibration — abnormal high-frequency sounds from loose components during operation

Its 2kHz to 100kHz frequency range covers both audible and ultrasonic signals produced by these faults.

What is the detection range of the TD2e?

The effective detection range is 0.3m to 60m.

Sounds closer than 0.3m may still be detected, but near-field effects can reduce positioning accuracy. Under certain conditions, sound sources with very high sound pressure levels may be detected beyond 60m.

Can the TD2e work in noisy industrial environments?

Yes. The TD2e is designed for industrial use. In noisy environments, use Noise Suppression Mode to filter out background noise and maintain stable acoustic imaging. You can also adjust the frequency range to focus on the target sound's frequency.

What's the difference between TD2e Standard and TD2e Kit?

The TD2e Kit includes everything in the Standard version, plus additional accessories for extended field use.The TD2e Kit includes everything in the Standard version, plus additional accessories for extended field use.

How long does the battery last?

≥3 hours of continuous operating time per battery. Actual operating time depends on environmental and usage conditions.

The TD2e Kit includes 2 batteries, allowing for full-day inspections with hot-swapping.

Field tests & expert reviews

FOTRIC in Action

See FOTRIC in real-world tests. Find the right tool for your work.

Loading video reviews…

Video review

  • 5 stars: 5 (83%)
  • 4 stars: 1 (17%)
  • 3 stars: 0 (0%)
  • 2 stars: 0 (0%)
  • 1 star: 0 (0%)
Y
Yiranaini

An amazing device for locating and characterizing all kinds of sounds for such tasks as diagnosing faults, finding leaks, etc. Very sensitive and very accurate! I have seen similar devices from other manufacturers but the cheapest one costs more than £8K and the prices range upwards from there to well over £20K. Given the quality, advanced technology, and capabilities of the Fotric TD2e, it's an incredible value!

D
Dubled

I usually don't leave reviews, but I have to on this product. Been looking for a good sound leak detector for HVAC industry and this tool work amazing. Finding the tiniest leak when it is a pressurized system or even when pulling a vacuum on a anything. Worth the $$$$ especially with the visual camera to pinpoint the leaks. Only thing I wish was the product came with a case so I can keep it from getting damage.

M
Michael

I bought this to track down hard to pinpoint noises and squeaks. For example, the other night we heard a cricket chirping someplace in the house. It was so hard to tell where the sound was coming from!

The next night when it started chirping again I thought I'd see if I could find the cricket with the TD2e. I found the frequency range of crickets online and used that to narrow the range on the TD2e. Within a few seconds we discovered why we couldn't find the cricket. The sound was clearly shown coming up through the floor from under the house!

Pretty amazing tool.

B
Brianmueller

It’s a lightweight camera and easy to use. The photo quality is good. Overall, it fulfills the purpose of the camera. Obviously, it’s not the same as a €15,000 camera.

A
Anonymous

Been chasing an air leak in our plant for weeks. Old ultrasonic tool kept giving false positives — drove me nuts. Plugged this in, swept the room, and there it was — clear as day on the screen, from like 50 feet away. The frequency display on the right side made it obvious which sound was the leak vs background noise. Took maybe 10 minutes total. Honestly, I was skeptical at first because the price seemed too good for this kind of tech. But nope. It just works. Already ordered a second one for our other facility.

A
Anonymous

Pulled it out of the box and honestly thought they sent the wrong thing — looks and feels like a way more expensive piece of gear. The housing is sturdy, not that cheap plastic feel you get with some budget tools. Screen is crisp, controls are intuitive enough that I didn't even glance at the manual. Fired it up, pointed it around my shop, and started finding air leaks in under a minute. Lightweight too — walked around for a good hour without my arm getting tired. For what this costs vs what it does, the build quality alone is a win.
